SCx12A 1000W Active 12-Inch Main/Monitor with DSP

 SCx12A User Manual

• Overview
• Specs

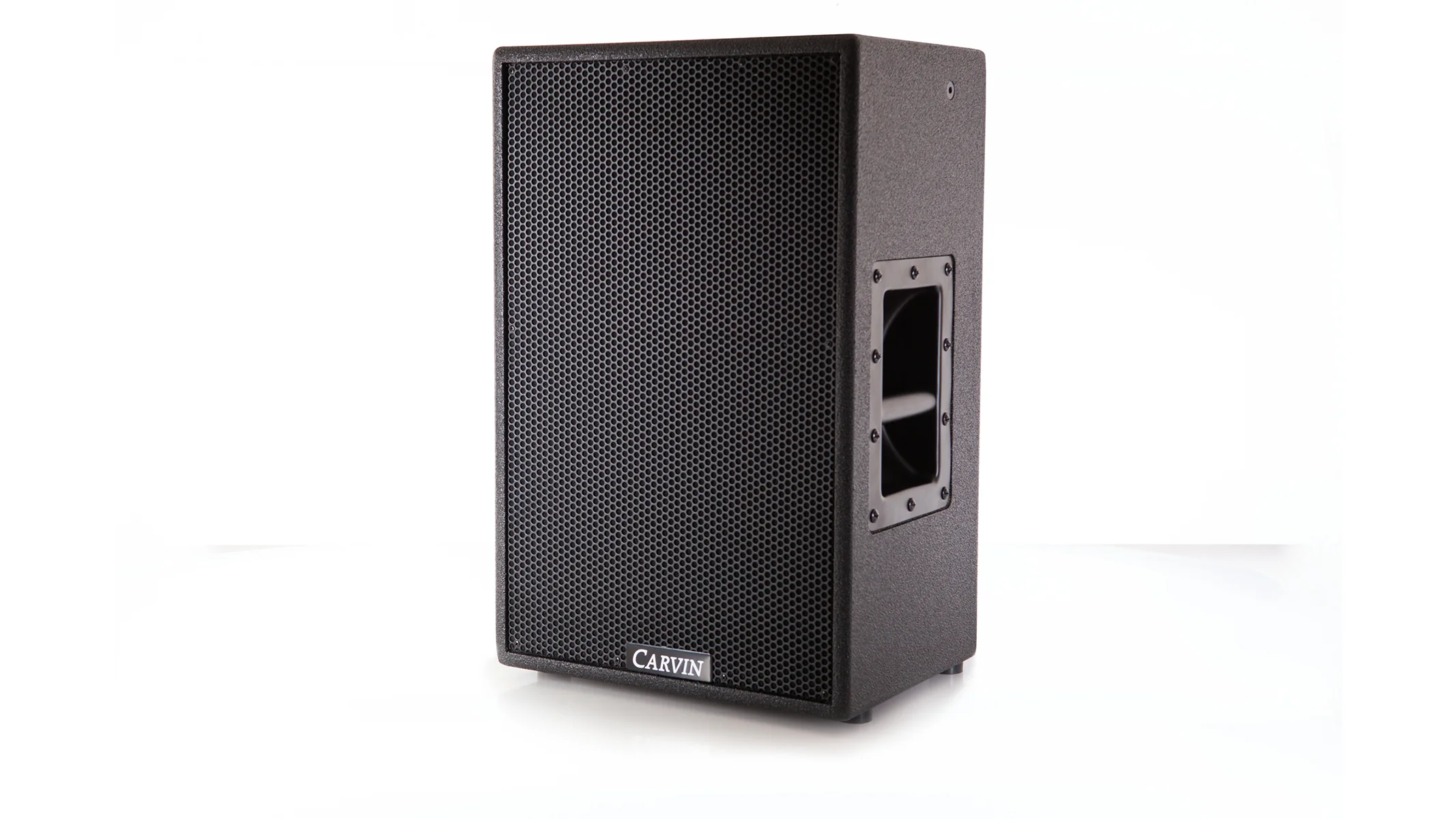

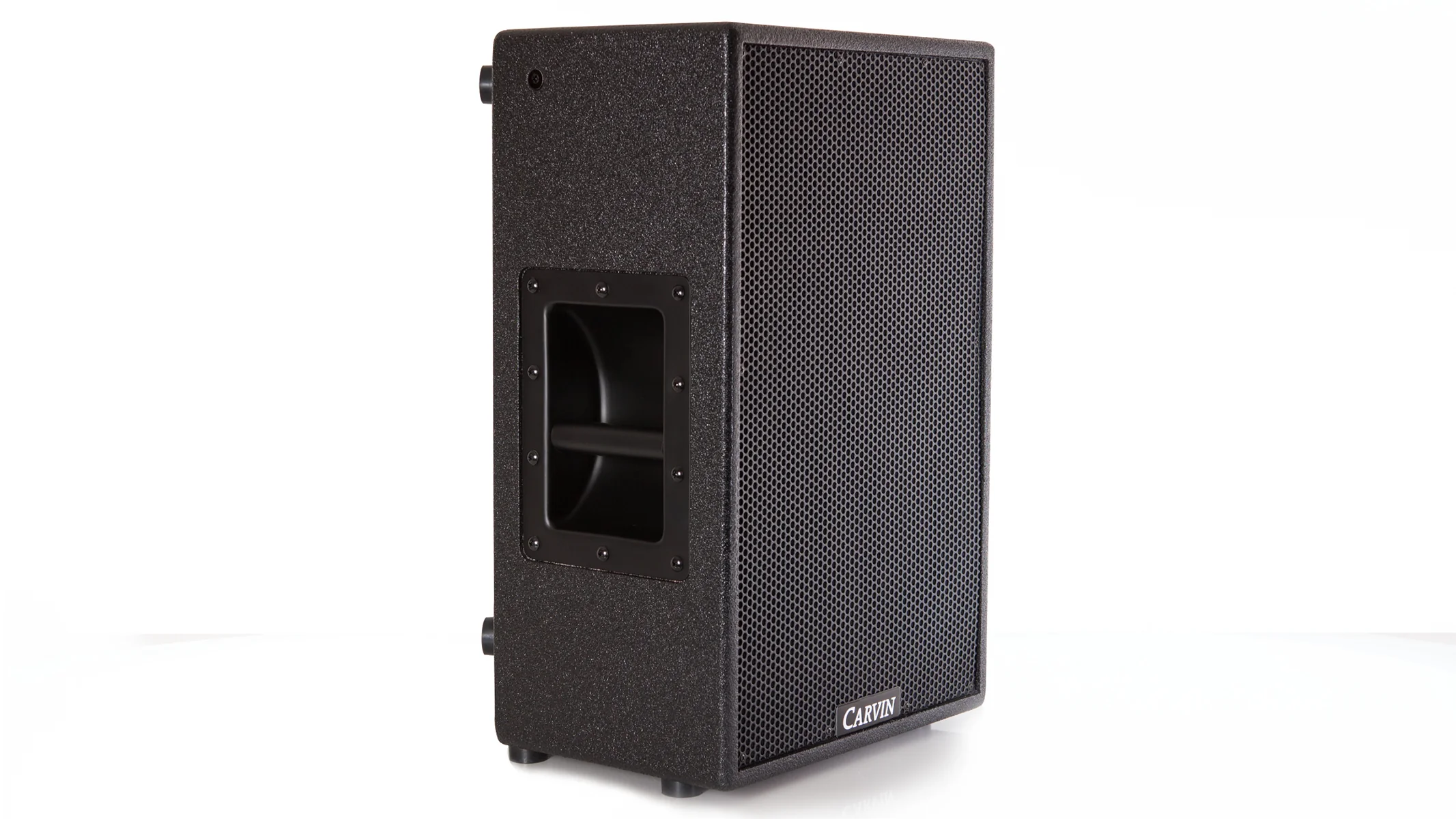

• The SCx12A is a 12-inch 2-way active enclosure perfect
  for smaller main loudspeaker applications and great

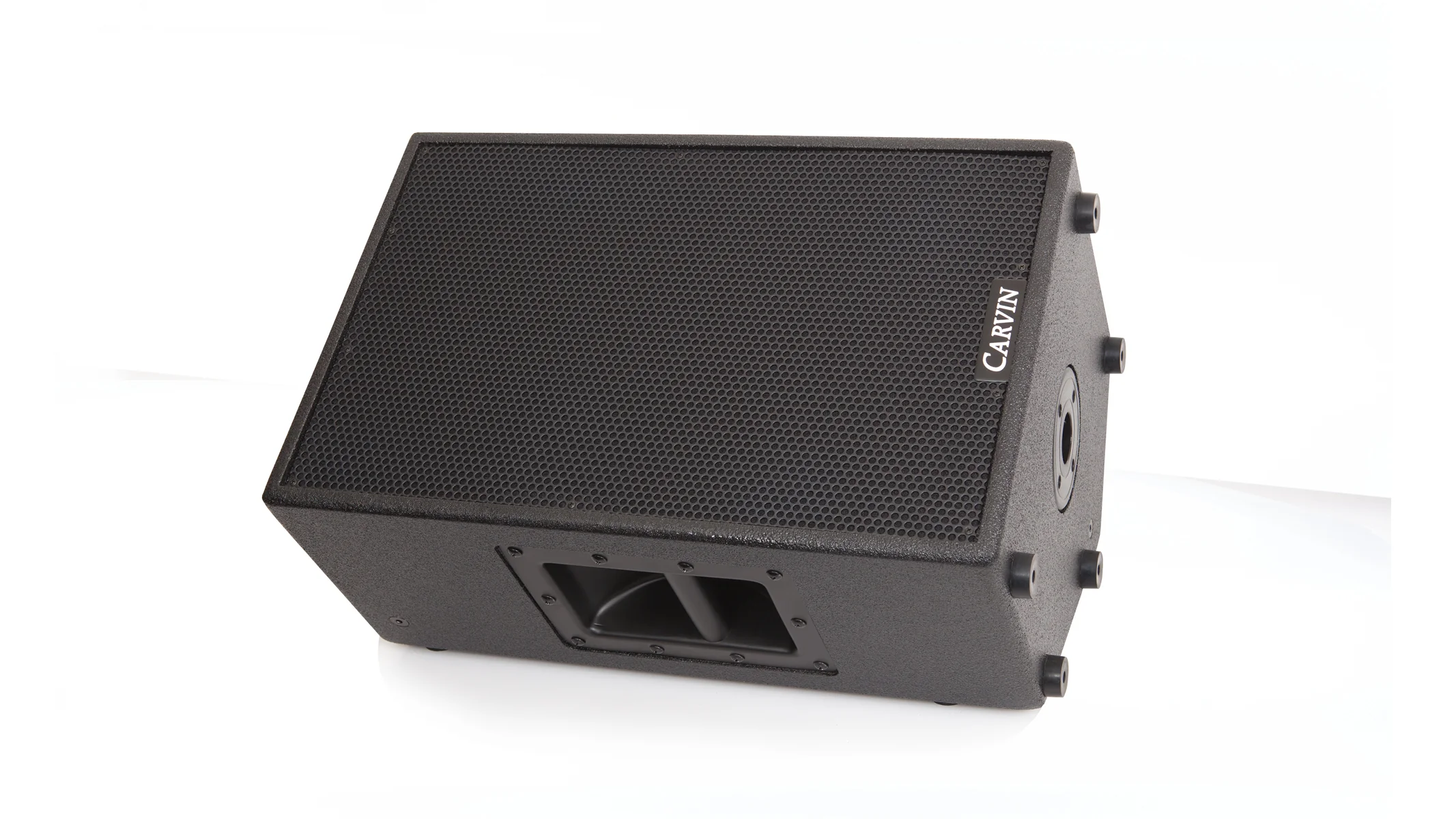

  for vocal stage monitors. The bi-amp 1000 watt active
  system delivers clear high SPL output with internal
  limiting to protect the drivers for years of service.



• »System Type: 12-inch 2-way, Active Bass Reflex
  »Frequency Response: 60Hz-20kHz (-10dB) 70Hz-18 kHz (-3dB)
  »Power: 1000W Program
  »Coverage Pattern: Main 90x60 Monitor 60x90
  »Sensitivity (1w/1m): 96dB
  »Maximum SPL: 126dB
  »Maximum Input Signal: +12dBu
  »LF: 12-Inch Woofer 4 Ohms
  »HF: 1.74-Inch 8 Ohms
  »Enclosure: Premium Multi-Ply Hardwood
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with cloth backing

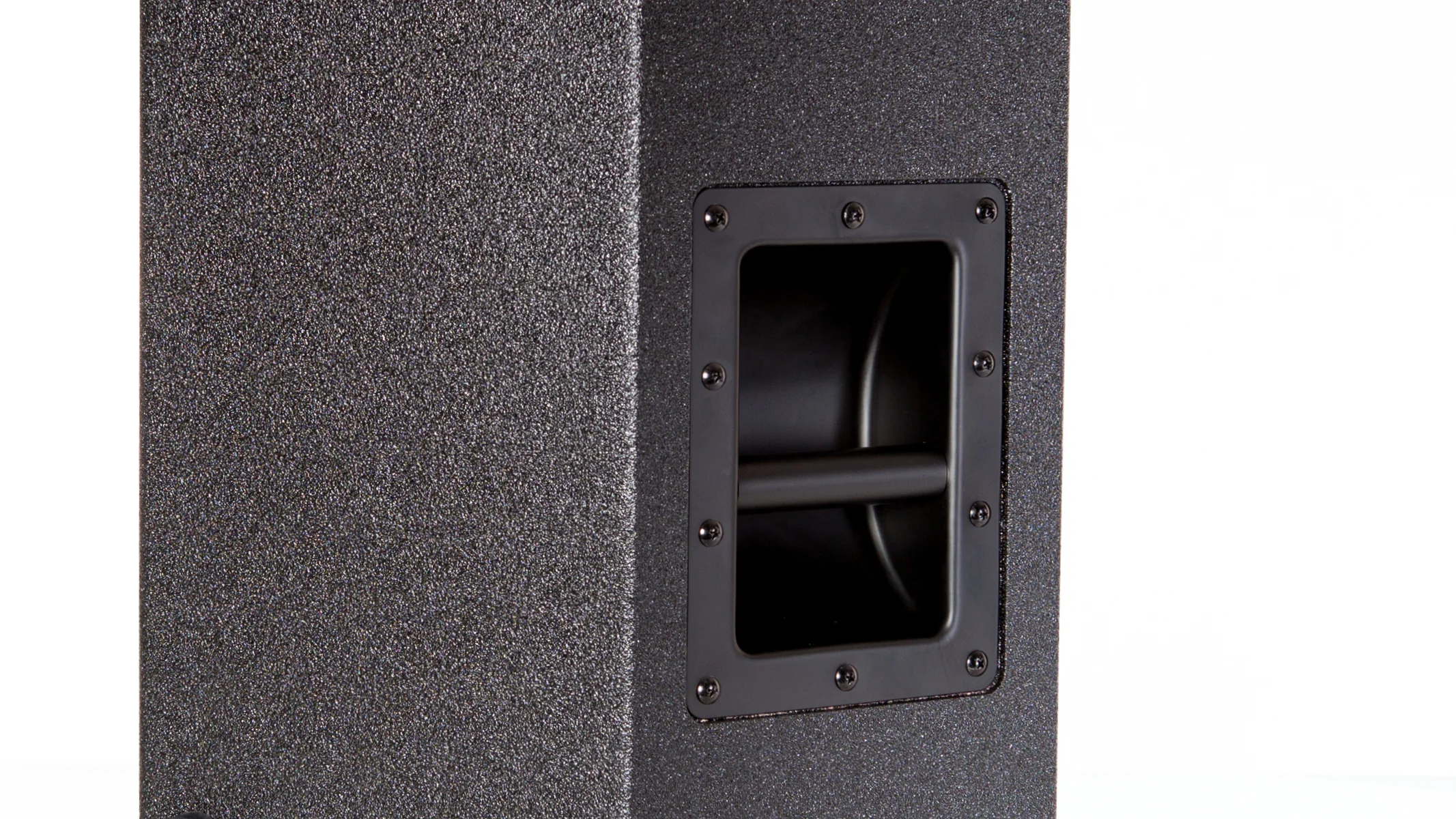

  »Transport: 2 Recessed handles

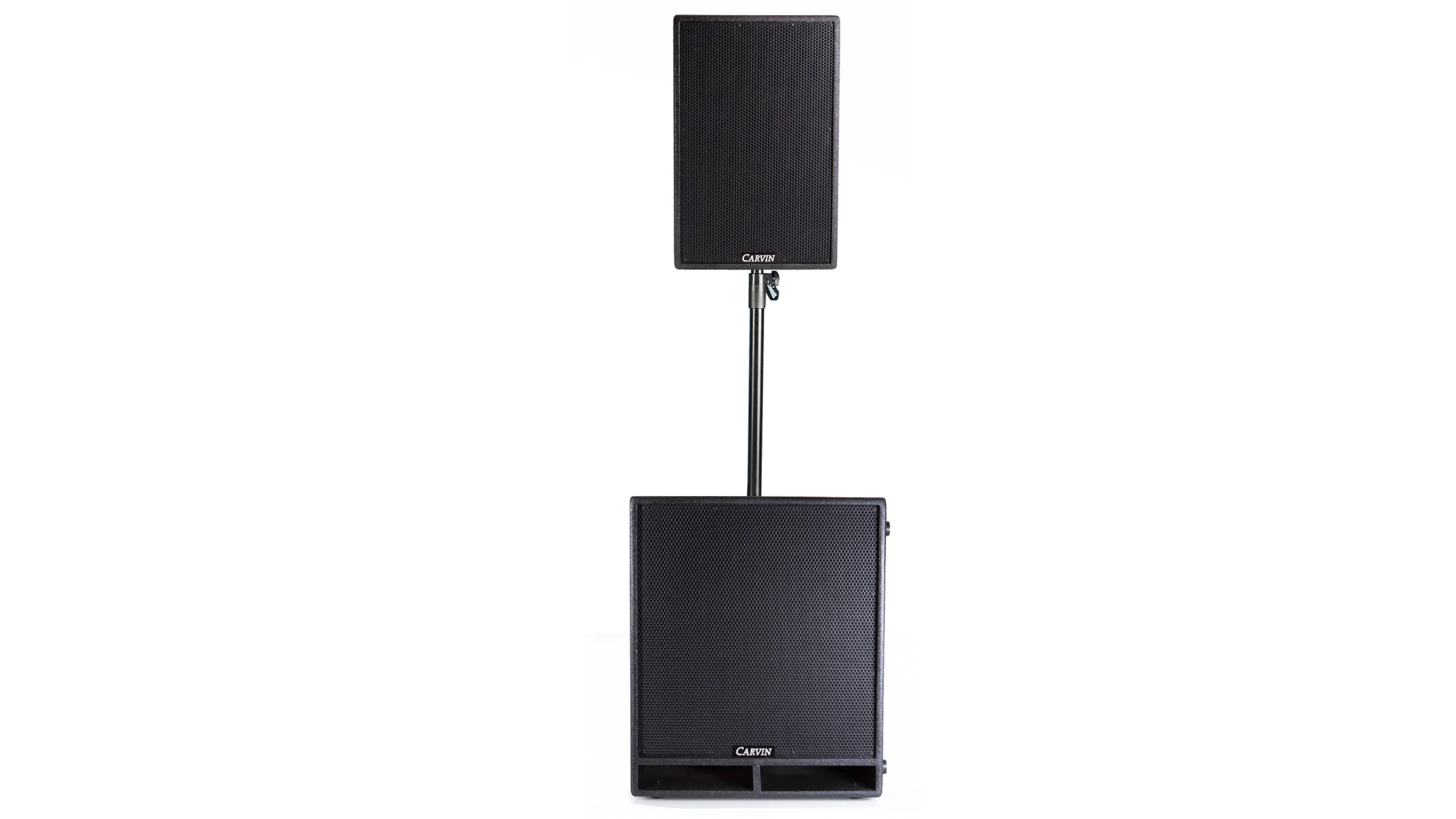

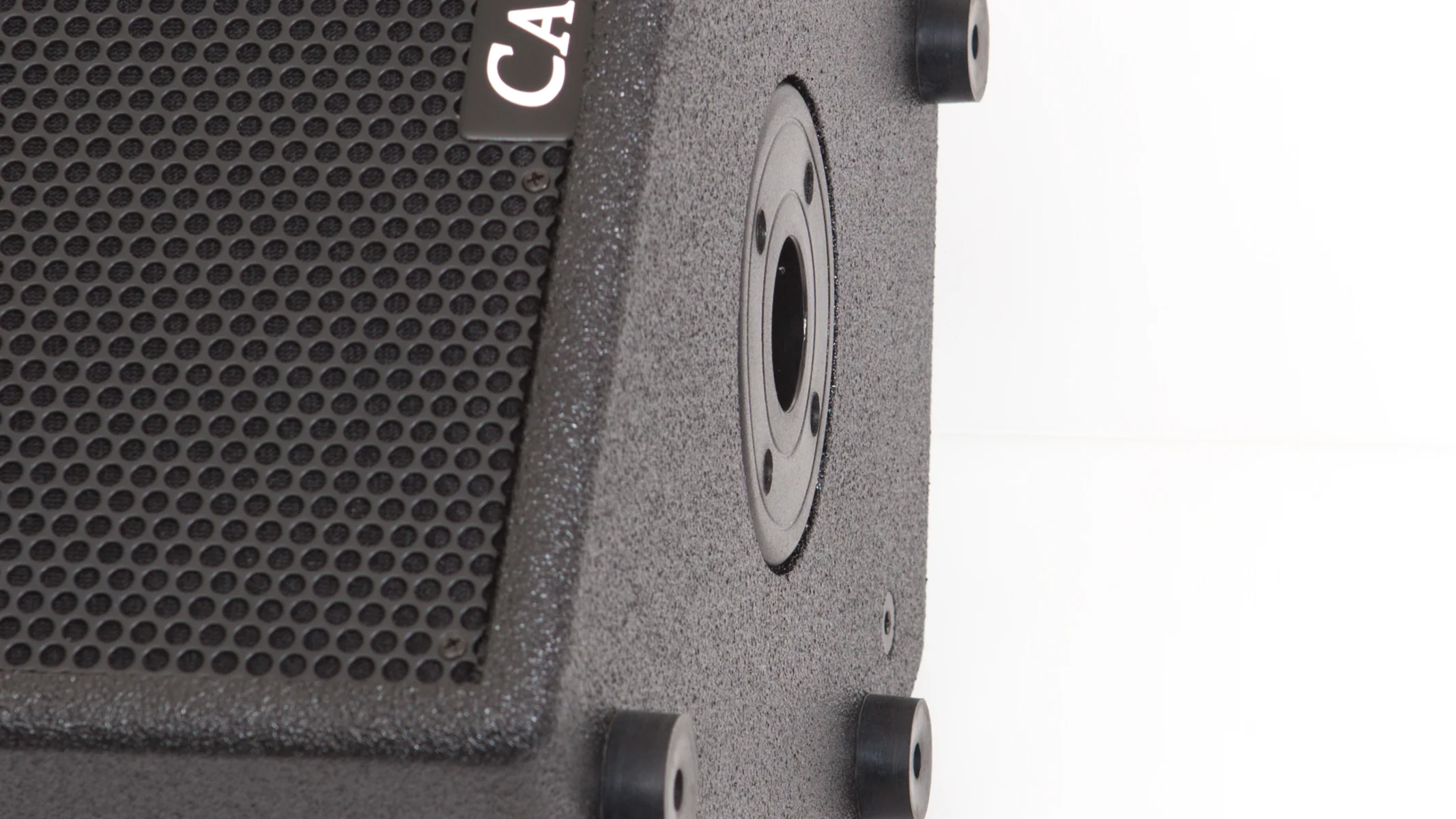

  »Pole Mount: 1.38-inch pole mount cup

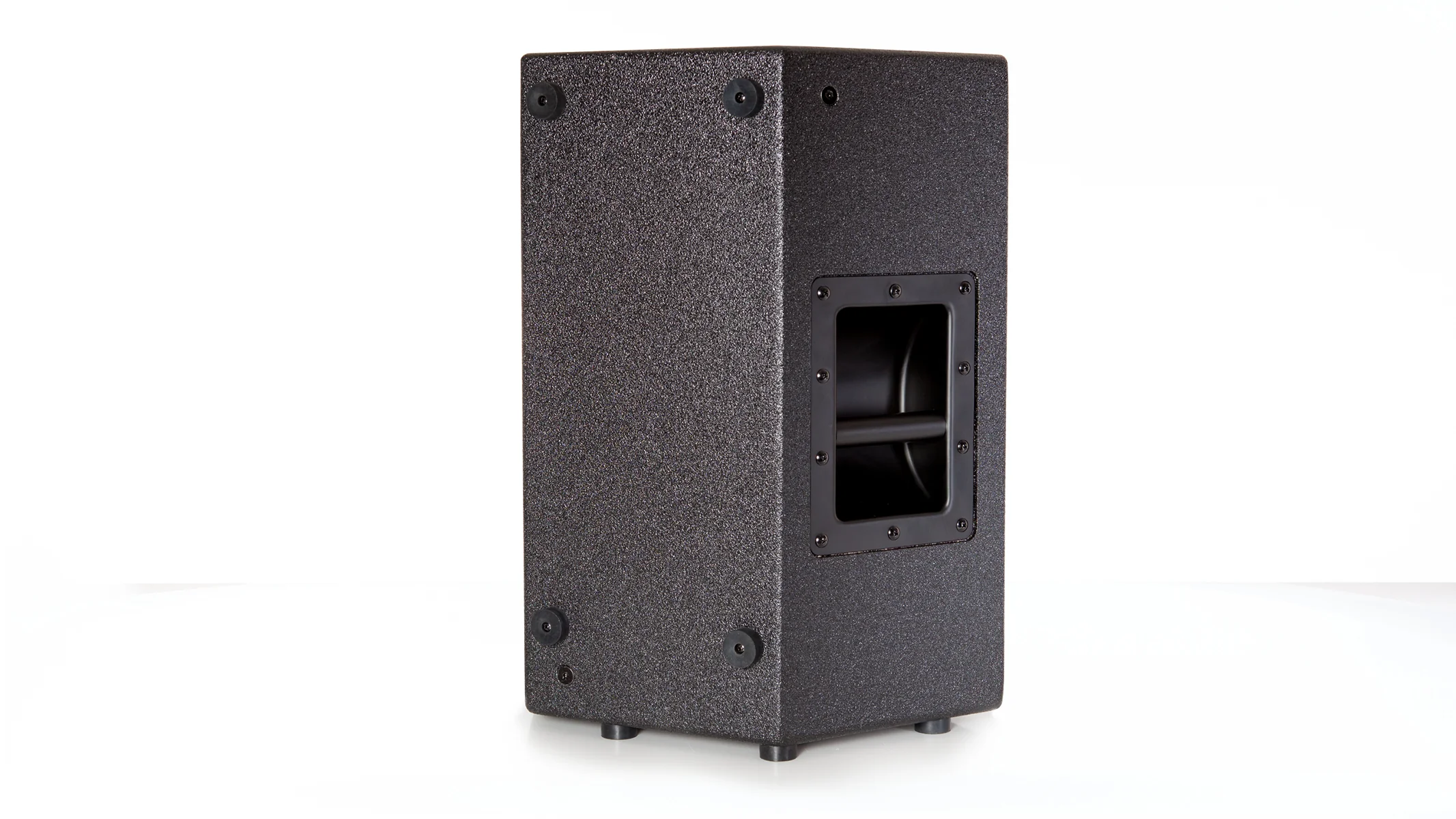

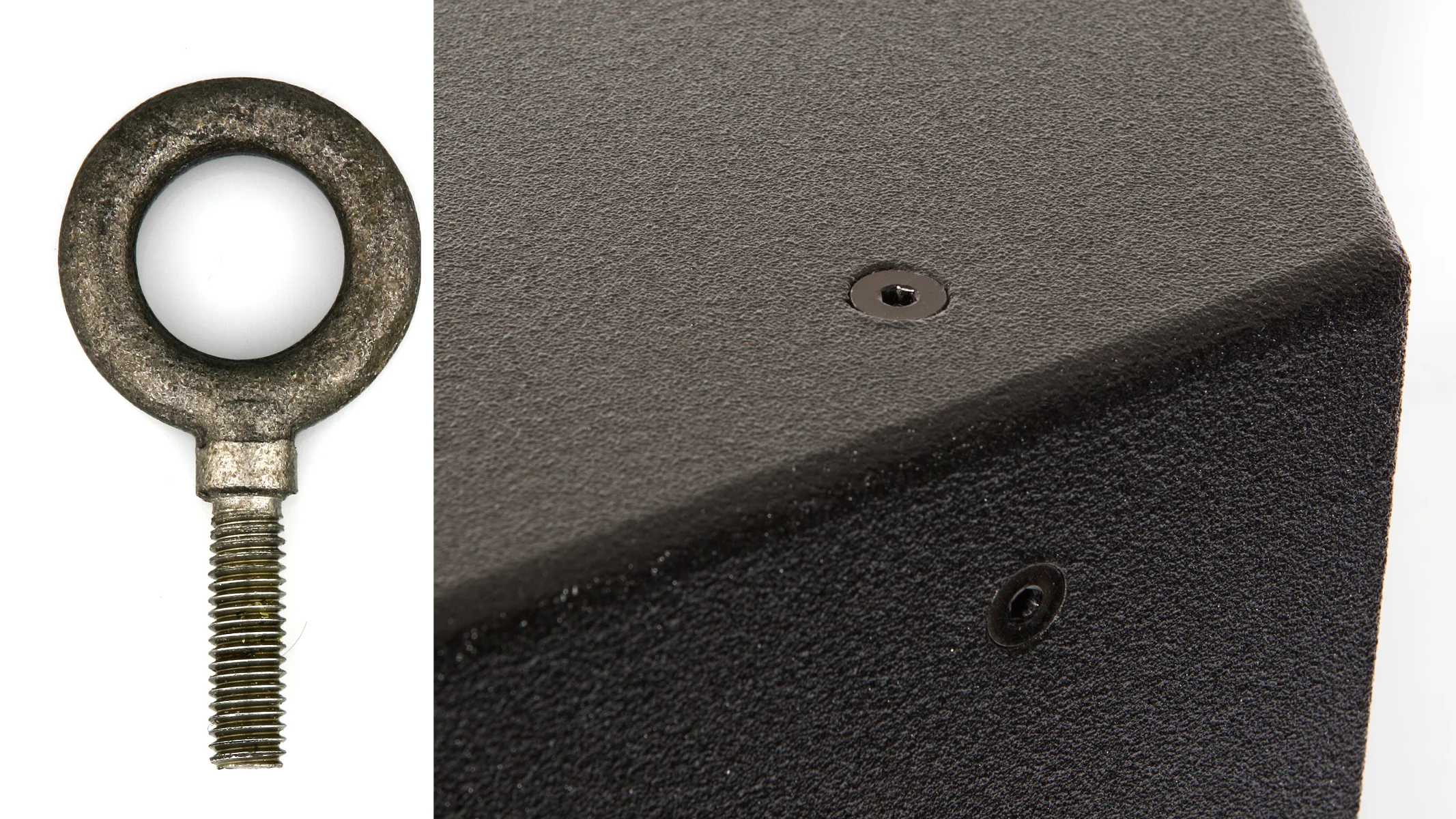

  »Suspension Points: 6 points using M8-1.25 x 30mm
  »AC Mains Input: 115V-230V (50-60Hz)
  »Net Weight: 35.5lbs
  »Dimensions: 14”W x 14”D x 22”H
